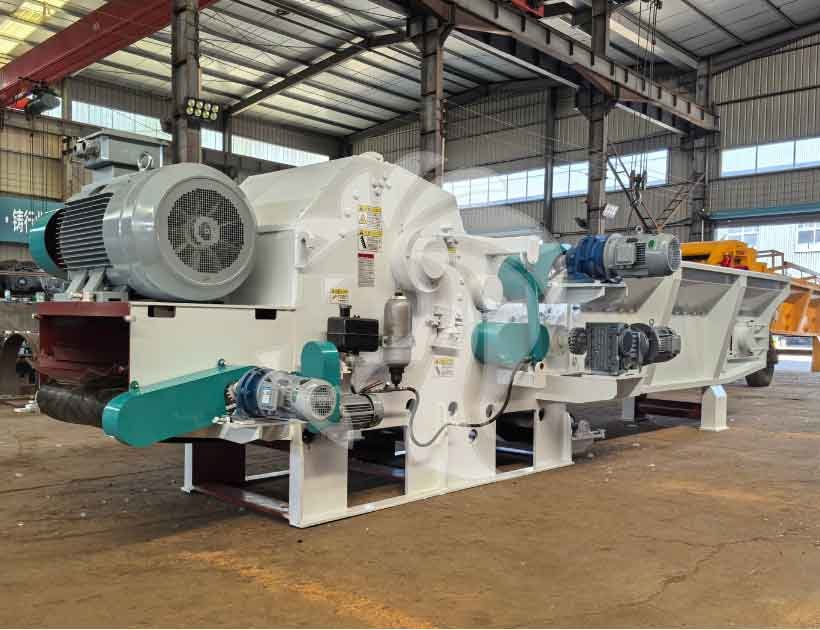

HEAVY DUTY WOOD CHIPPER MACHINE
The heavy-duty wood chipper machine is a high-efficiency machine specifically designed for wood and biomass cutting, capable of meeting the high-output needs of medium to large-scale industries.
HEAVY DUTY WOOD CHIPPER FOR SALE

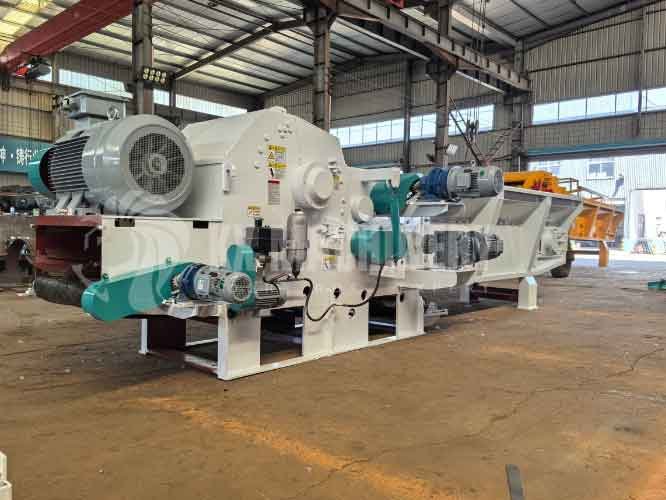

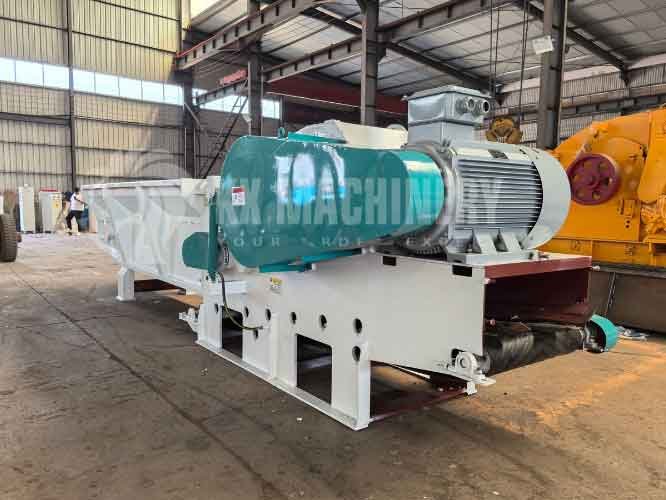

The heavy-duty wood chipper is designed with a chain-feeding conveyor. It's a high-efficiency wood-chipping machine that integrates automatic feeding and heavy-duty chipping to meet the continuous-operation needs of medium- and large-scale industries.
This heavy-duty wood chipper is an ideal and highly efficient piece of equipment for the wood chip production industry. Its main feature is its automatic steel chain feeding system. This system boasts excellent material conveying capacity, easily feeding logs, planks, and other materials into the chipping chamber. It is also well-suited for mechanized grabber feeding, is robust and durable, and has an extremely low failure rate. The blades inside the cutting chamber operate efficiently, ensuring uniform material size. This high-efficiency equipment provides strong support for industries such as wood processing, biomass pelleting, and briquetting energy utilization.
HEAVY DUTY WOOD CHIPPER TYPES AND MODELS

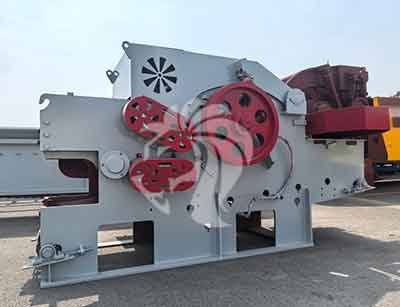

KXHC216 Wood Chipper
Chain conveyor feeding design, 55 or 75KW main motor, capacity 5-8ton/h, and permit 20cm diameter wood logs chipping.

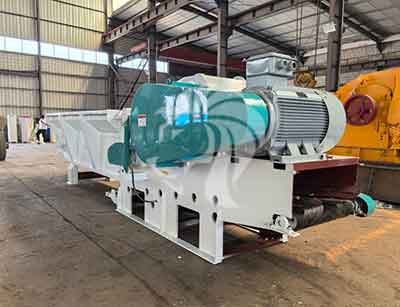

KXHC218 Heavy Duty Wood Chipper
One piece type steel chain conveyor feeding design, 110W main motor, capacity 7-12ton/h, and permit 25cm diameter wood logs chipping.

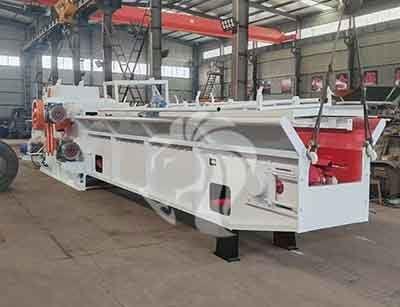

KXHC2110 Whole Tree Chipper
One piece type steel chain conveyor feeding design, 200KW main motor, capacity 15-25ton/h, and permit whole tree chipping .

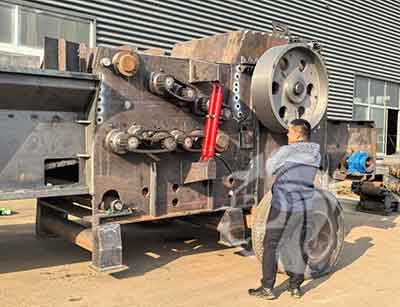

KXHC2113 Largest Wood Chipper
This is the largest wood chipper, with 220/250 kW main motor, it is suitable for large wood logs with a diameter of up to 50 cm.
HEAVY-DUTY WOOD Chipper TEST Run Video
The video shows the KXC218 chain conveyor feeding type heavy-duty wood chipper test run video. The capacity customer needed is 7-10ton/h, and the wood logs average size is 15-20cm. The wood logs moisture content is 50-60%, and the customer has a wood chips rotary dryer, and they are doing a wood chips exporting business. Considering the dryer drying efficiency, we customized the feeding speed and blade numbers to get a smaller wood chip size of around 20mm.
TECHNICAL PARAMETERS
| MACHINE MODEL | TOTAL POWER | CAPACITY | MAXIMUM WOOD LOG SIZE |
|---|---|---|---|
| KXHC216 | 69.7KW | 5-8Tons/h | 20cm |
| KXHC218 | 128.2KW | 7-12Tons/h | 30cm |
| KXHC2110 | 227.7KW | 15-25Tons/h | 35cm |
| KXHC2113 | 259.5KW | 25-40Tons/h | 45cm |
The above parameters are for reference only. Actual output needs to be calculated based on the hardness, diameter, and feeding method of the raw materials.
THE RAW MATERIALS CAN BE PROCESSED BY HEAVY DUTY WOOD CHIPPER
Heavy-duty wood chippers are not just for adding weight to scrap wood; they can process a variety of raw materials, mainly including the following:
- Wood scraps such as planks and sawdust
- Logs and branches
- Whole trees of suitable diameter
- Various crops such as palm leaves and hollow palm fruit bunches
HOW TO CHOOSE THE BEST HEAVY DUTY WOOD CHIPPER
Choosing the best heavy-duty crusher is not an easy task for beginners, as there are many criteria for judging the quality of a machine. Based on over 20 years of production experience and customer feedback, we would like to share some insights that we hope will be helpful to those just entering this industry.
1. A well-designed main unit and motor bearings are essential.
The design of the main unit, such as the rotor diameter and speed, the number of blades, and the screen size, must be matched to the maximum diameter of the raw material and the size of the wood chips. A poorly designed wood chipper machine is prone to clogging, low output, and high failure rates. The brand and configuration of the motor and bearings directly determine the machine’s output and lifespan. Therefore, the best heavy-duty crusher must have a scientific design and excellent configuration.
2. The feeding system must be compatible with the main unit.
The feeding system refers to the R-type hardened tooth surface reducer, feed rollers, feed chain plate system, hydraulic lifting system, etc. Heavy-duty wood chippers typically use a grab feeder. Therefore, the raw material impacts the feeding conveyor system during the feeding process. A good feed chain needs to be designed with a correction device, support rollers, and reinforcing ribs. This helps the machine withstand the impact of the falling material and reduces the machine’s failure rate.
For more details, please contact us.
DRUM WOOD CHIPPER DESIGN STRUCTURE & DRAWING
Steel Chain Conveying Feeder
8mm thickness steel chain feeederm and it is driven by a motor-driven hardened tooth surface geabox. Workers use a grabber to grab raw materials and put them into the feeder, which then feeds the materials into the chipper main unit.
Wood Chipper Main Part
The main motor drives the flywheel via a belt conveyor, which in turn drives the main blade of the chipper to rotate. The rotating main blade continuously cuts the raw materials fed in by the feeder. Wood chips that reach the required size are screened through a screen and fall onto the belt conveyor at the bottom of the machine.
Discharging Belt Conveyors
The discharge conveyor at the bottom of the machine transports the shredded wood chips onto a secondary conveyor belt, where they are either piled up or directly transported into trucks.

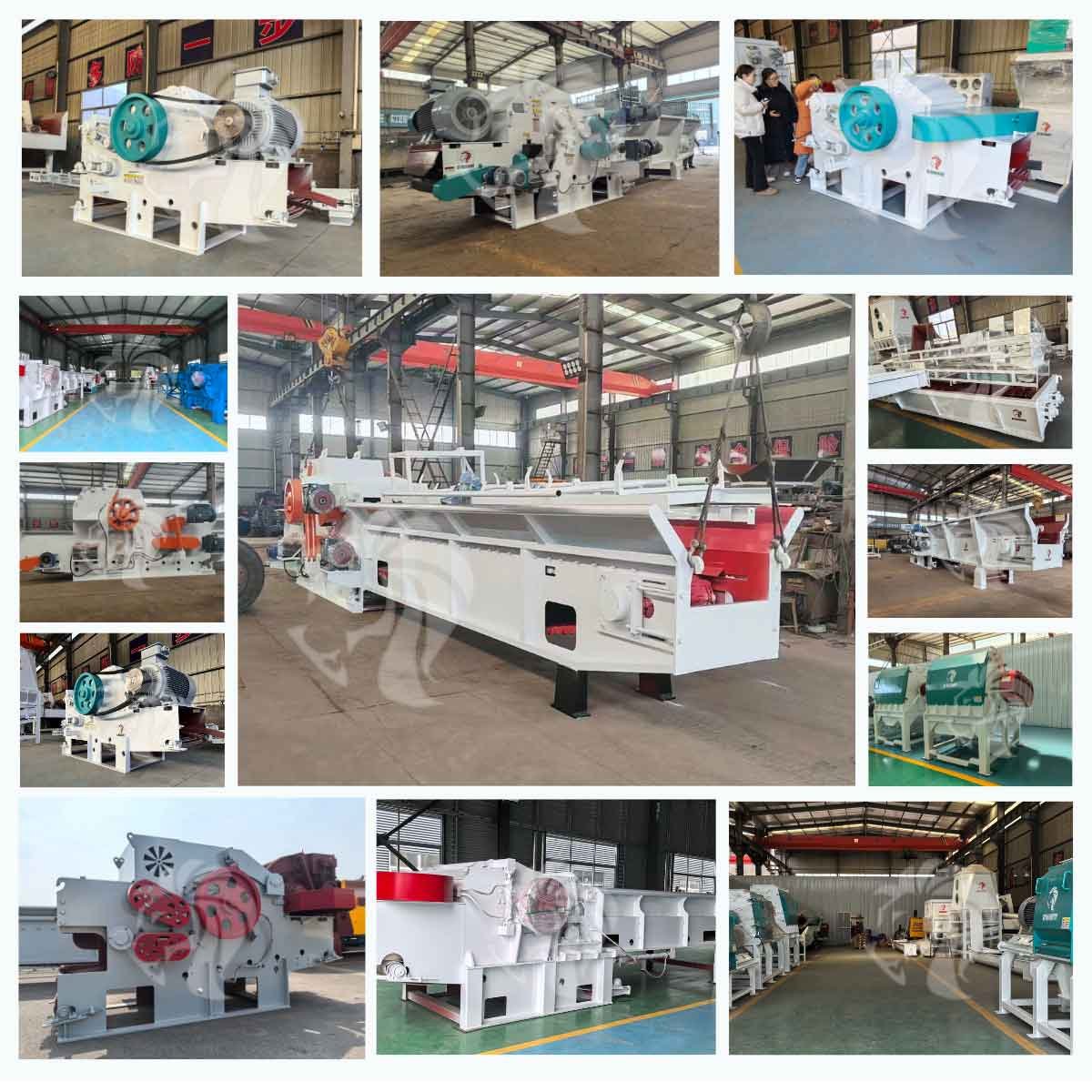

PROFESSIONAL HEAVY DUTY WOOD CHIPPER MANUFACTURER
JK Machinery boasts a professional design and R&D team, enabling us to provide customized production based on your raw material characteristics and production needs. Given our excellent machine quality and market reputation, repeat purchases and referrals from our long-term customers account for over 60% of all orders. Choosing JK will never disappoint you.
FREQUENTLY ASKED QUESTIONS
What is a good heavy duty wood chipper?
To judge whether a heavy-duty crusher is good or not, several aspects should be considered: low energy consumption, high output, low failure rate, and convenient operation. If it can achieve the above points, then it can be considered a good chipper.
what is the heavy-duty wood chipper price?
We have four models in total. You will need to select the model based on the maximum diameter of your raw materials and your production requirements to receive a price quote. The price ranges from 25,000 to 65,000 USD. You can send us photos of your raw materials and production requirements to receive a detailed quote.
Do you provide heavy-duty wood chipper hire service?
We do not offer chipper rental services currently.
Recommended for you

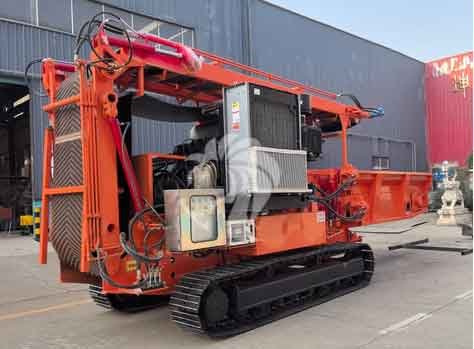

Tracked Wood Chipper
Suitable for mountainous and muddy roads, tracked and fully hydraulic design, powerful diesel engine.

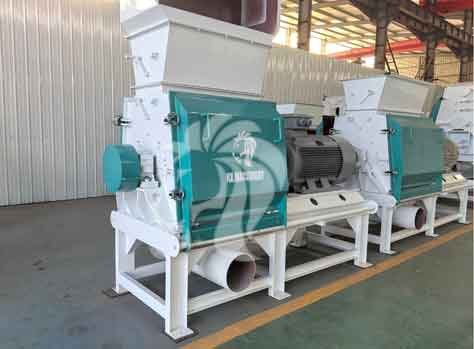

Wood Hammer Mill
Crushing wood chips into sawdust, can accommodate various raw materials with both low and high moisture content.

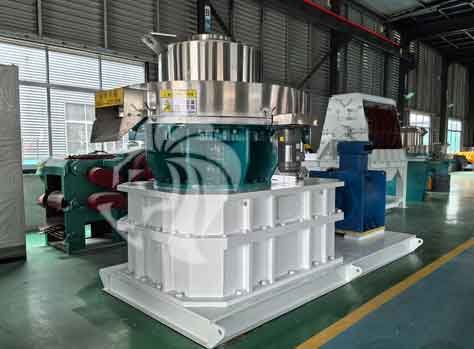

Industrial Wood Pellet Mill
