KXCD-65130 HAMMER MILL PULVERIZER
The KXCD-65130 heavy-duty hammer mill pulverizer is specifically designed for agricultural and forestry waste, enabling easy and efficient crushing, ensuring smooth production, and achieving efficient recycling of waste.
KXCD-65130 HAMMER MILL PULVERIZER FOR SALE
The KXCD-65130 high-efficiency hammer mill pulverizer is a direct-drive, high-efficiency, 4-6t/h capacity biomass waste crushing equipment. It operates smoothly and can run continuously for 24 hours.
The KXCD-65130 is a hammer mill pulverizer primarily used for medium-scale production. It features a 132 kW/160kW main motor and a 22 kW blower, employing high-strength, wear-resistant hammers. It can easily crush sawdust and other high-fiber biomass waste materials into powder smaller than 10 mm. The crushed material can be directly sent to power plants or used to make wood pellets and biomass briquettes. This machine boasts high output, low energy consumption, and stable operation, making it an indispensable core piece of equipment in large-scale biomass pellet production lines.
TECHNICAL PARAMETERS
| Item | Technical Data |
|---|---|
| Model | KXCD‑65130 hammer mill pulverizer |
| Main Motor | 132KW / 160KW |
| Capacity | 4‑6Tons/h(The raw material initial size, bulk density, moisture content, final size needed, these factory decide the real capacity together) |
| Voltage & Frequency | standard 380V, 50Hz, other voltage and frequency need be customized. |
| Final Size | 2mm‑20mm |
| Blades | 120 pieces hammer blades |
| Complete System | Automatic feeder, feed conveyor, hammer mill, cyclone separator with airlock, dust collector, bottom discharge screw conveyor, belt discharge conveyor and control panel. |
| Discharge Conveyors | Belt conveyor/screw conveyor (the specific choice depends on the characteristics of the raw materials). |
| Application | The final product is a fine powder, widely used in biomass pelleting plants and resource recycling. |
| Delivery Time | The production time is 20‑30 days, while for customized models it need around 25‑35 days. |
KXCD-65130 HAMMER MILL PULVERIZER DETAILS DISPLAY

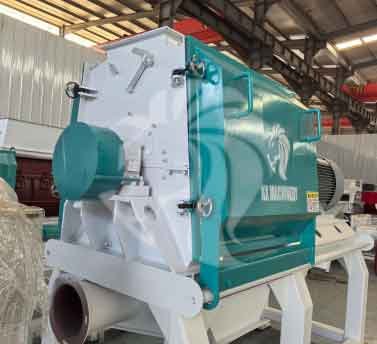

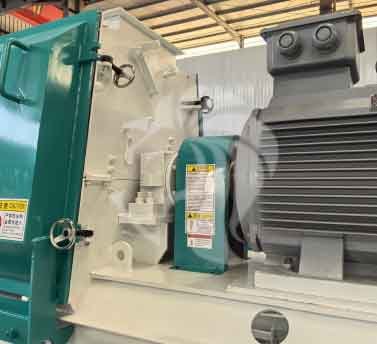

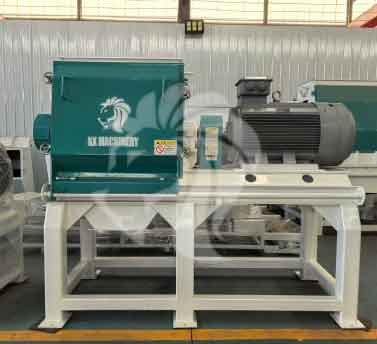

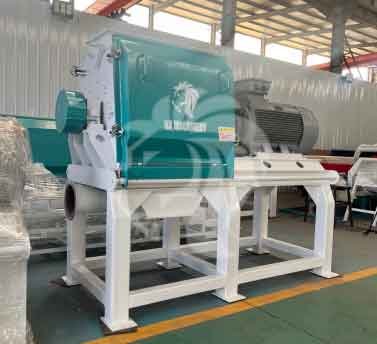

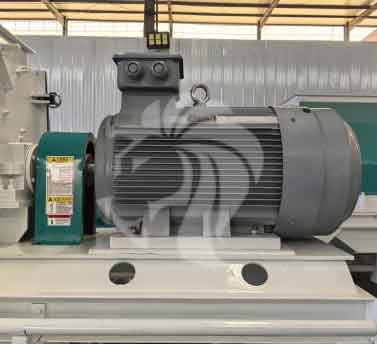

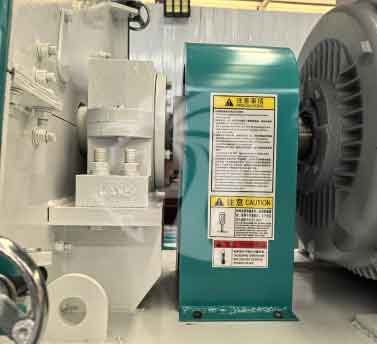

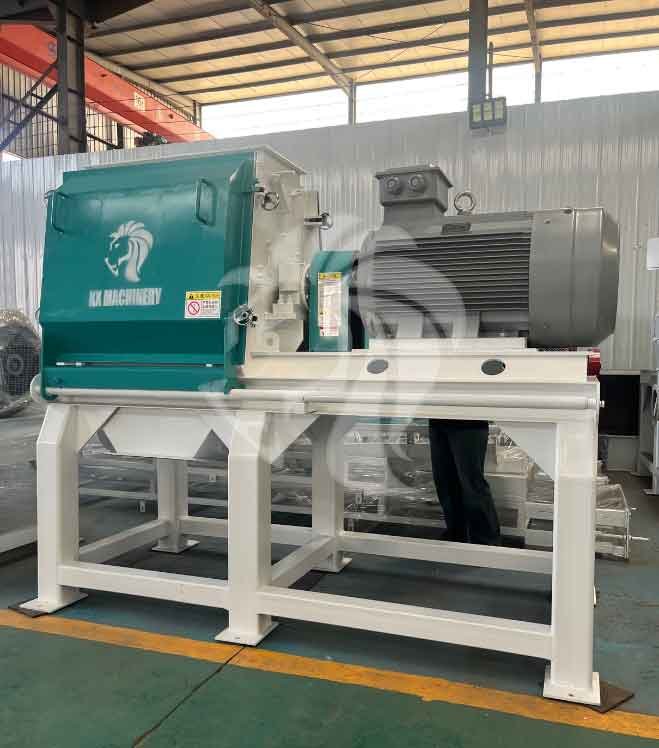

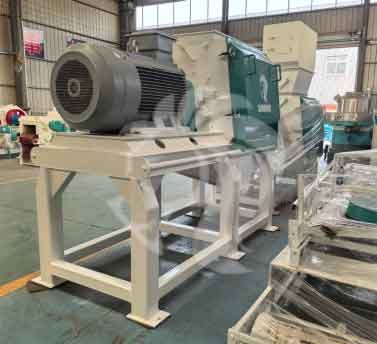

The photos above showcase the appearance and details of the KXCD-65130 pulverizer hammer. The entire machine is welded from high-quality, thickened steel, and all rollers undergo rigorous dynamic balancing testing, ensuring stable operation and vibration-free high-speed operation. It uses imported NSK or SKF bearings, ensuring that the bearings do not overheat even under heavy loads. Furthermore, the feed inlet features a double-layer guide plate design, which guides the material while preventing material splashing, making operation safer. If the budget allows, an automatic feeder can be configured to save labor costs while maximizing output.
KXCD-65130 HAMMER MILL demonstration video
The video above showcases the exterior of the KXCD-651300 hammer pulverizer. The main body consists of the crushing chamber, rotor assembly, motor, coupling, and base. The rotor features a rationally designed blade spacing for stable dynamic balance. The hammers are made of high-strength wear-resistant steel with a wear-resistant coating, increasing their service life. The sliding doors on both sides facilitate easy opening and closing and machine maintenance. Simple to use and stable in operation, it is the ideal model for medium-capacity production needs.
WHAT RAW MATERIALS CAN THE KXCD-65130 HAMMER MILL PROCESS?
The KXCD-65130 biomass hammer mill pulverizer easily crushes wood chips, coconut shells, hazelnut shells, crop straw, stalks, peanut shells, palm wood, EFB, and other raw materials into finished powder of different sizes from 2 to 20 millimeters. You can control the finished product size by changing the screen with different hole diameter. The feed size is approximately 3-5 cm (it can also handle small quantities of large wood blocks up to 10cm), and the output size is 3-20 mm. The output size can be customized according to your project requirements. The pulverized product is widely used in industries such as biomass pellet processing and boiler fuel.
It can crush the following raw materials：
- Timber and forestry waste：Pruned branches from fruit trees, broken branches from urban landscaping, shrub branches, wood strips and scraps from furniture factories, construction waste, wood chips, etc.
- Agriculture and biomass：Coconut shells, hazelnut shells, rice straw, corn stalks, cotton stalks, corn cobs, etc.
- some other kind of industrial waste like paper, plastic etc.
KXCD-65130 HAMMER PULVERIZER MACHINE STRUCTURE

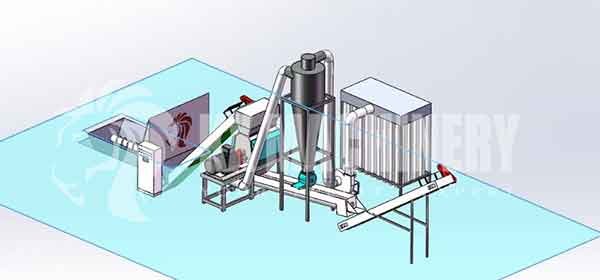

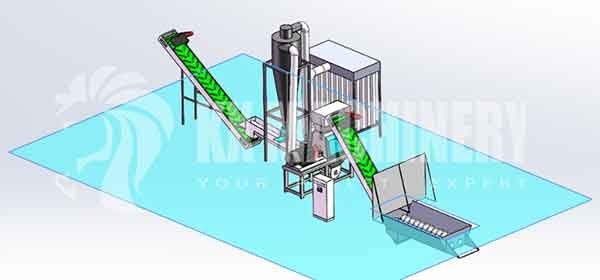

The high-efficiency KXCD-65130 crusher consists of a feeding system, a main crusher, a cyclone separator with an air lock, a dust collector, and a discharge system.
During production, raw materials are collected by an automatic feeder and conveyed to the main crusher via a belt conveyor. Inside the hammer mill, hammers rotate at a high speed of 2950 rpm, pounding the raw materials. The crushed material, meeting the final size requirements, passes through a screen and is drawn into a cyclone dust collector by a blower. Finally, it is discharged from the bottom of the cyclone dust collector by a airlock. The discharge system can be either a belt conveyor or a screw conveyor, depending on the characteristics of the raw materials. For raw materials with high moisture content or high specific gravity, the discharge system needs to be customized to avoid blockage and ensure machine output and stable operation.
LISTEN TO WHAT JK MACHINERY CUSTOMERS HAVE TO SAY
We have big farms. Every harvest season, a lot of straw bales in the field. The straw bales can be shredded and crushed, and then pressed into animal bedding pellets by a pellet mill.
We order the complete pellet plant from KX MACHINERY ( the subsidiary of JK Machinery, which is responsible for biomass plant projects). It includes this KXCD-65130 biomass pulverizer. Its powerful crushing ability, combined with the large-diameter feed, allows for smooth feeding of straw. The equipped screen structure ensures that the pulverized material is of uniform size, making it ideal for bedding material, and we’ve developed the market very smoothly.
FREQUENTLY ASKED QUESTIONS
What is the actual output of the KXCD-65130 hammer mill?
Typically, the KXCD-65130 has an output of 4-6 tons/hour, but the actual output depends on the characteristics of the raw material. If the raw material has a high moisture content, the output will be lower some.
Can the final material diameter of the KXCD-65130 be adjusted?
Sure. The final material size after crushing could be choosable from 3mm to 20mm. You can adjust the final product size by changing the screen size, which is very simple; changing the screen generally takes no more than 20-30 minutes.
Is the voltage and frequency customizable?
Yes. The standard model has a voltage and frequency of 380V and 50Hz. If your local voltage and frequency do not match this, we accept customization.
What are the wear parts of the KXCD-65130 crusher, and how often should they be replaced?
Wearing parts include hammers and sieves.Based on customer feedback, replacement is generally recommended every 4-8 months, depending on the raw material actual condition.
What is the machine's warranty period? Could you send engineers for commissioning?
We offer a one-year warranty. Upon receiving the machine, we can provide online installation guidance and, if needed, arrange for an engineer to provide on-site installation guidance.
Related Machine
KXC218 Wood Chipper
This wood chipper can process wood smaller than 25cm into chips about 3cm in diameter, making it an ideal choice for efficient wood recycling and processing.
KXRD1200A Rotary Dryer
This dryer can process high-moisture materials to a moisture content of 13%, which is a core step before biomass pelleting.

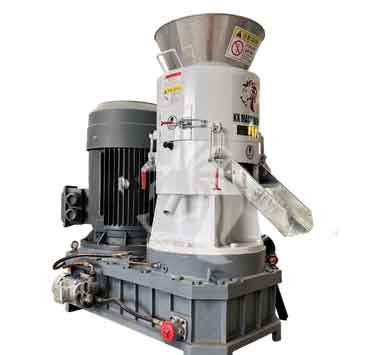

KXFD550A Pellet Machine
